k.Air
总体特征

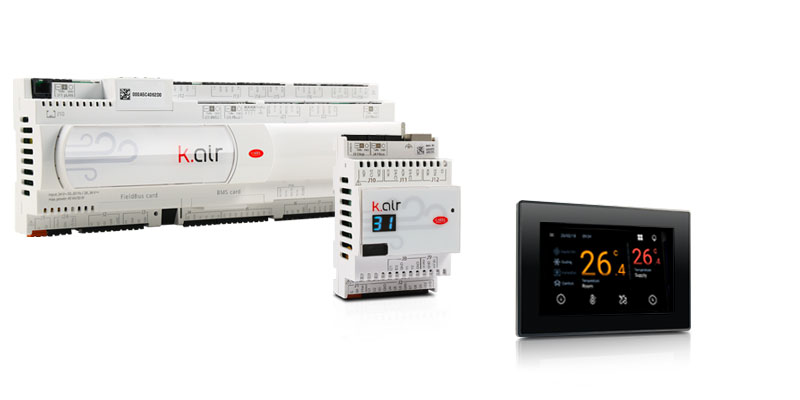

k.Air is the ready-to-use solution for managing air handling and ventilation units.
k.Air is a preprogrammed and fully-configurable controller, designed to reduce times and costs, from design right through to commissioning. Thanks to the LARGE, MINI, and SMART versions and the feature-rich software, k.Air offers considerable flexibility, so as manage as many applications as possible, from the simplest to the most complex unit.
The distinctive feature of k.Air is the result of CAREL's extensive experience in air handling unit and humidification management applications. Its intelligent control logic in fact ensures comfort, indoor air quality and a healthy environment, always with the lowest energy consumption, through hygienic and efficient operation of all of the components of the air handling unit.
k.Air offers an advanced user experience: simplified access to information for users and service via an integrated web interface. A set of graphic pages with unit dashboards are available from first start-up, ready to be used with the new pGDx family of touchscreen displays.
-
更多
Flexibility
A single application with modular architecture, designed to adapt to a wide range of application layouts.
Plug&play
Easy configuration and commissioning.
- Pre-loaded configurations;
- Custom configurations generated by an external tool;
- Auto-Backup of the last active configuration;
- Manual configuration via display of all the unit's components;
Connectivity
Simplified integration, both in the field with the unit's components, and integration with higher-level supervisory systems or BMS via built-in serial and Ethernet communication. Standard building automation protocols such as Modbus and BACnet are native in the controller.
Usability
Built-in web interface with graphic pages and dashboards.
Air quality and hygiene
- Indoor air quality control
- Accurate control of isothermal and adiabatic humidification
- VDI-6022 program, with functions to improve unit hygiene based on the requirements of the VDI standard
Energy efficiency
- Smart device management based on minimum energy consumption
- Freecooling, freeheating, heat recovery and indirect evaporative cooling
- Management of direct expansion systems with DC compressors and EEV synchronisation
文档
技术
-
技术说明
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 +0500135IE 描述 P+5A0SFC*LK, P+DA00FHD*FK: k.Air - kit per controllo unità trattamento aria e ventilazione / kit for air handling and ventilation unit control 语言 ENG ITA 日期 04/10/2023 版本 1.2 -
用户手册
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 +030220980 描述 k.Air Controllo per unità di trattamento aria 语言 ITA 日期 04/10/2023 版本 1.5 代码 +030220981 描述 k.Air Air handling unit controller 语言 ENG 日期 04/10/2023 版本 1.5 代码 +030220982 描述 k.Air Commande pour unités de traitement d’air 语言 FRE 日期 04/10/2023 版本 1.5 代码 +030220984 描述 k.Air Control para unidades de tratamiento del aire 语言 SPA 日期 04/10/2023 版本 1.5
商业
-
其他相关文档
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 +3000262EN 描述 Highly-efficient energy recovery for controlled mechanical ventilation units - Combined thermal wheel + reverse-cycle heat pump solution 语言 ENG 日期 01/08/2024 版本 1.0 代码 +3000262IT 描述 Recupero dell’energia ad alta efficienza per unità di ventilazione meccanica - Soluzione combinata di scambiatore di calore rotativo e pompa di calore reversibile 语言 ITA 日期 01/08/2024 版本 1.0 代码 +800004030 描述 Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico 语言 ITA 日期 05/04/2023 版本 1.2 代码 +800004031 描述 Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving 语言 ENG 日期 05/04/2023 版本 1.2 代码 +800004036 描述 Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach 语言 POL 日期 05/04/2023 版本 1.2
产品图片
-
高清图片
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 PH18LP+307-kAir-range 描述 kAir-CAREL-HVAC controls-Air Handling and Ventilation 语言 ALL 日期 01/09/2021 版本 R.0
