µAria

UARA*
µAria
  • 总体特征

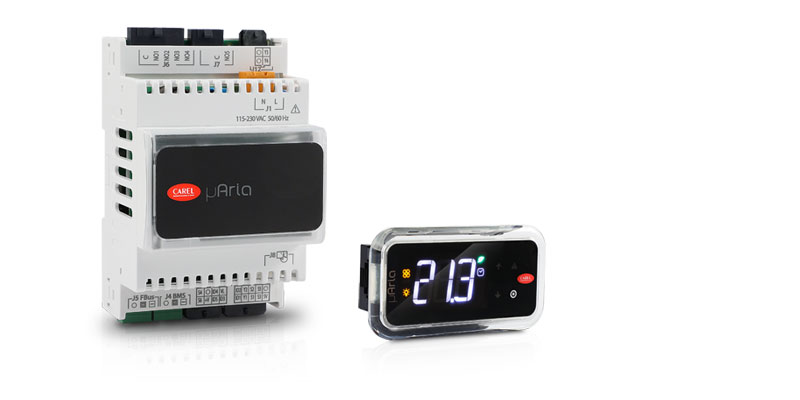

    µAria is the ready-to-use solution for managing residential air handling units with heat recovery.


    µAria is a parametric controller, designed to reduce time and costs from the design phase to the start-up phase. Its flexibility allows it to handle the entry level HRV compact machine range up to about 1000 m3/h.
    CAREL's knowledge in the field of air handling units ensures intelligent control logic, ensuring optimal operation of all devices.
    Multiple types of probes and sensors (temperature, humidity, CO2, VOC, etc.) can be managed, which measure the desired values and use them for the defined adjustment modes. This ensures a high level of comfort in the rooms served by the unit by controlling air quality and air exchange, while optimising energy performance.


    µAria offers an advanced user experience thanks to its standard Bluetooth and NFC wireless connectivity, in combination with the APPLICA App.
    APPLICA, which can be downloaded free of charge to smartphones from Google Play for Android or App store for iOs, makes it possible to fully configure the unit in a few simple steps thanks to the pre-loaded synoptics and configurations.
    Combined with the th-Tune terminal, the user can easily adjust temperature and humidity to achieve the desired environmental conditions.

  • 更多

    Flexibility

    A single application designed to adapt to different unit layouts.

    Plug&play

    Easy configuration and start-up.

    • Pre-loaded configurations with customisation possibilities.
    • Manual configuration of all unit components.

    Connectivity

    • Wireless NFC and Bluetooth connection via CAREL App “APPLICA” for fast commissioning, diagnostics and maintenance of the unit with simple interface and synoptics.
    • Easy integration of both field components and higher-level supervisory or BMS systems, thanks to integrated Modbus RTU RS485 serial communication.

    Usability

    • Seven-segment, single-line LED display for improved usability of information.
    • Dedicated interface for quick access to variables and configurations, for use on Android and iOs smartphones.

    Air quality and hygiene

    • Room air quality control on CO2 setpoint and VoC.
    • Humidity control in the indoor environment.

    Energy efficiency

    • Intelligent device management based on minimum energy consumption.
    • Free cooling and Free heating.
    • Heat recovery.


文档

技术

  • 2D/3D 图纸
    代码 描述 语言 日期 * 版本
    代码 UARADE0001320

    描述 2D-3D drawings

    语言 ALL

    日期 13/11/2024

    版本 R0

    代码 UARAE00N01310

    描述 2D-3D drawings

    语言 ALL

    日期 08/11/2024

    版本 R0

    代码 UARAD00001370

    描述 2D-3D drawings

    语言 ALL

    日期 07/10/2024

    版本 R0

  • 技术说明
    代码 描述 语言 日期 * 版本
    代码 +0500143IE

    描述 μARIA product technical leaflet - Controllo elettronico per unità di trattamento aria e ventilazione / Electronic control for air handling and ventilation unit

    语言 ENG  ITA

    日期 07/05/2025

    版本 1.8

  • 用户手册
    代码 描述 语言 日期 * 版本
    代码 +0300105IT

    描述 μAria - Controllo per unità di ventilazione con recuperatore di calore

    语言 ITA

    日期 20/08/2024

    版本 1.4

    代码 +0300105EN

    描述 μAria - Controller for ventilation units with heat recovery

    语言 ENG

    日期 20/08/2024

    版本 1.4

    代码 +0300105PT

    描述 μAria Controle para unidades de ventilação com recuperador de calor

    语言 POR

    日期 20/08/2024

    版本 1.4


商业

  • 产品手册
    代码 描述 语言 日期 * 版本
    代码 +3000219IT

    描述 µAria - Controllo per unità di ventilazione con recuperatore di calore

    语言 ITA

    日期 20/09/2024

    版本 1.1

    代码 +3000219EN

    描述 µAria - Controller for ventilation units with heat recovery

    语言 ENG

    日期 20/09/2024

    版本 1.1

    代码 +3000219ES

    描述 µAria - Control para unidades de ventilación con recuperador de calor

    语言 SPA

    日期 20/09/2024

    版本 1.1


产品图片

  • 高清图片
    代码 描述 语言 日期 * 版本
    代码 PH22LMA301-µAria-display

    描述 CAREL µAria - Air Handling and Ventilation - HVAC control

    语言 ALL

    日期 30/09/2022

    版本 R.0

    代码 PH22LMA305-µAria-din-white

    描述 CAREL µAria - Air Handling and Ventilation - HVAC control

    语言 ALL

    日期 30/09/2022

    版本 R.0
