c.pCOe

c.pCOe

  • 总体特征

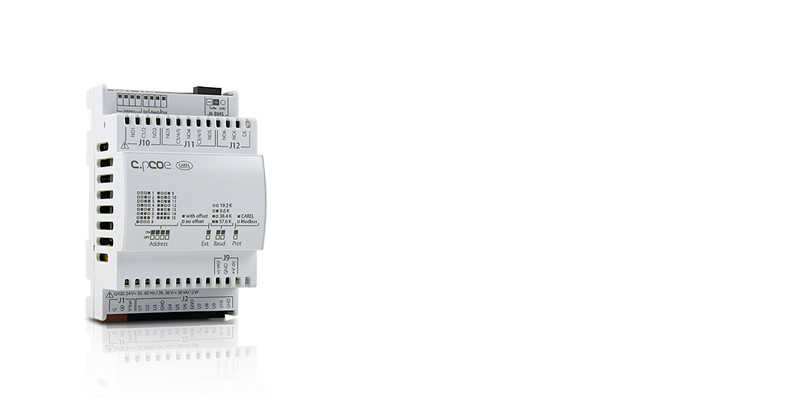

    c.pCOe is the I/O expansion card, built using with CAREL-proprietary microchip, that allows considerable flexibility in the configuration of the various pins, both as inputs (support for passive NTC, PTC, PT1000 probes, digital inputs and active voltage and current probes) and as outputs (0-10 V, PWM).

    The c.pCOe card is available in 2 versions:

    • Basic version, with a total of 16 I/O channels available, 10 of which can be configured as analogue inputs or outputs, and 6 relays.
    • Enhanced version, same I/O configuration as the basic version, with the addition of a built-in driver for managing a CAREL unipolar electronic expansion valve.

  • 更多
    • DIN rail mounting (4 DIN)
    • 10 universal channels (inputs/outputs)
    • 6 relays
    • 24 Vac/Vdc power supply
    • Integrated RS485 port
    • c.Suite and 1tool libraries for rapid integration
    • Built-in unipolar EXV driver (Enhanced version)
    • Ultracap module support (Enhanced version)


文档

技术

  • 2D/3D 图纸
    * Entries are ordered by date
    代码 描述 语言 日期 * 版本
    代码 2d-3d cpCOe

    		 描述 2D-3D drawings

    		 语言 ALL

    		 日期 01/12/2016

    		 版本 R0

  • 技术说明
    * Entries are ordered by date
    代码 描述 语言 日期 * 版本
    代码 +0500059IE

    		 描述 P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion

    		 语言 ENG  ITA

    		 日期 14/02/2022

    		 版本 1.4

    代码 +0500059FR

    		 描述 P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion

    		 语言 ENG  FRE

    		 日期 14/02/2022

    		 版本 1.4

  • 用户手册
    * Entries are ordered by date
    代码 描述 语言 日期 * 版本
    代码 +0300057EN

    		 描述 c.pCO Programmable Controller

    		 语言 ENG

    		 日期 28/03/2025

    		 版本 1.7


产品图片

  • 高清图片
    * Entries are ordered by date
    代码 描述 语言 日期 * 版本
    代码 PH16LP+305-cpCOe-enhanced

    		 描述 c.pCOe-CAREL-Programmable Controls-I/O expansions

    		 语言 ALL

    		 日期 02/09/2021

    		 版本 R.0
