Heosbox HFC

HB1*
Heosbox HFC
Heosbox HFC Heosbox HFC Heosbox HFC Heosbox HFC Heosbox HFC

  • 总体特征

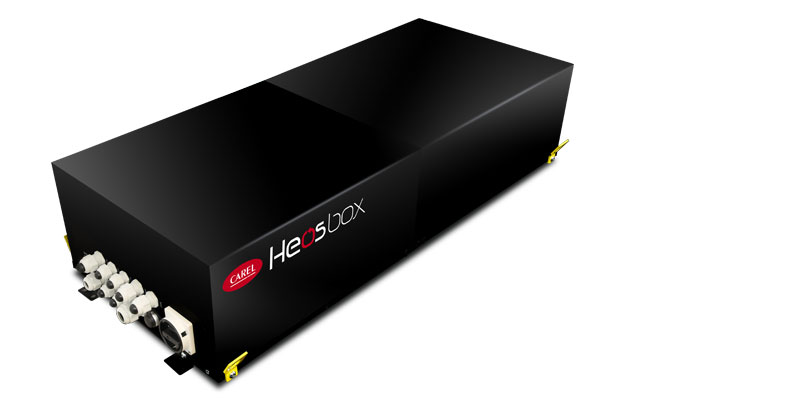

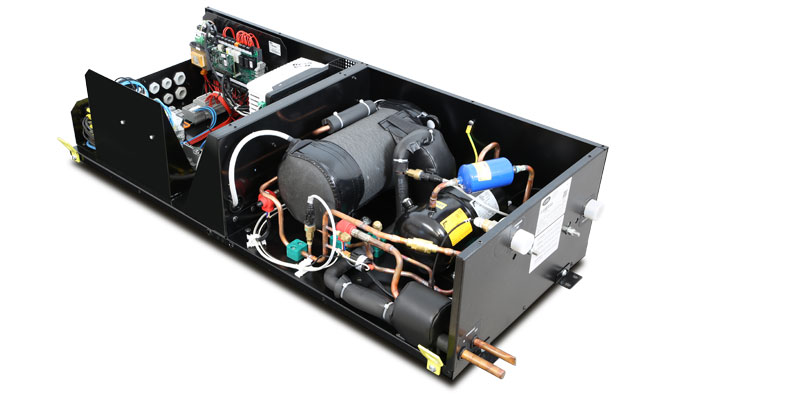

    Heosbox is a condensing unit for waterloop applications entirely engineered and manufactured by CAREL.
    Heosbox incorporates all of the features of the Heos solution, starting with the controller and the components for continuous modulation:

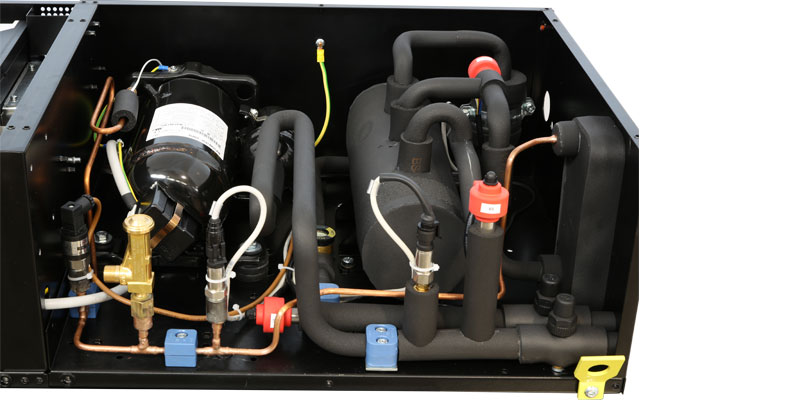

    • BLDC compressors. DC technology allows greater efficiency through permanent magnet brushless motors, the widest range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions. Both vertical and horizontal solutions are available, with a wide range of brands and performance.

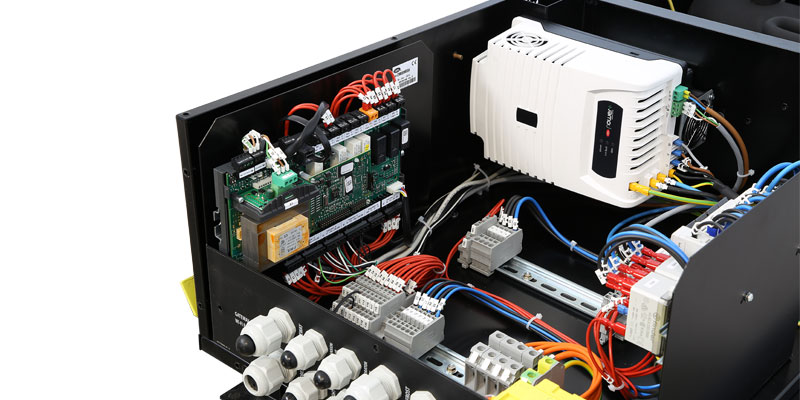

    • DC drivers. CAREL drivers for Heos applications feature high electrical efficiency and reliability of both the driver and the entire solution, thanks to perfect integration with the system (envelope control, safe torque off, crankcase heater...), as well as electromagnetic compatibility . Class B firmware is available, with integrated protection and consequent savings in installation costs.
    • Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor, the evaporation temperature can be controlled continuously to ensure efficiency in all operating conditions. The use of electronic valves also allows preventive and alarm monitoring actions, for greater reliability of the entire solution.
    • Heos controller. All-in-one solution for:
        - cabinet temperature and superheat control
        - compressor management (envelope, COP calculation, oil recovery procedures)
        - condensing stage control
        - lights, defrosts, fans and alarms

    Heosbox is available for R448A/R449A, R410A synthetic refrigerants, with both CE and UL certification. Capacities up to 10 kW in MT conditions (-10°C/40°C) and 3.5 kW in LT conditions (-30°C/40°C) to satisfy a wide range of applications.
    Performance combined with ease of use thanks to the default pre-configuration for immediate use.

    Heosbox is also supplied with integrated services developed specifically for this solution, which include remote monitoring, data analysis tools and advanced algorithms for predictive maintenance.

  • 更多

    Heos solution available

    Faster time-to-market for early adopters.

    Quality and reliability

    All of the experience and know-how available in a 100% Carel solution

    One stop shop

    CAREL as the sole supplier and partner

    Usability

    Pre-configured and ready-to-use unit.

    Local and remote supervision

    Dedicated advanced IOT services included in the offering.



    All the unique features and advantages of Heos technology:

    Continuous system modulation

    Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.

    Energy efficiency

    The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.

    Maximum food preservation quality

    Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.








文档

技术

  • Selection tool
    代码 描述 语言 日期 * 版本
    代码 HFC sizing tool

    描述

    语言 ALL

    日期 27/03/2023

    版本 6.1

  • 用户手册
    代码 描述 语言 日期 * 版本
    代码 +0300089IE

    描述 HEOS BOX Manuale d’uso/User manual

    语言 ENG  ITA

    日期 27/01/2022

    版本 1.4

    代码 +0300097EF

    描述 Heosbox Assembly instructions, including information for use and maintenance North America version Instructions pour l’assemblage, avec des informations relatives à l’utilisation et à l’entretien Versions North America

    语言 ENG  FRE

    日期 17/06/2021

    版本 1.0


商业

  • 产品手册
    代码 描述 语言 日期 * 版本
    代码 +3000207EN

    描述 Heosbox Cutting-edge technology for your semi plug-in cabinets

    语言 ENG

    日期 08/09/2020

    版本 1.0

    代码 +3000207IT

    描述 Heosbox L’avanguardia della tecnologia per i tuoi cabinet semi plug-in

    语言 ITA

    日期 08/09/2020

    版本 1.0

  • 应用手册
    代码 描述 语言 日期 * 版本
    代码 +4000095EN

    描述 Complete solution for food retail

    语言 ENG

    日期 23/01/2024

    版本 1.0

    代码 +4000095IT

    描述 Soluzione completa per il Food Retail

    语言 ITA

    日期 23/01/2024

    版本 1.0


产品图片

  • 高清图片
    代码 描述 语言 日期 * 版本
    代码 PH20DUP304-heosbox-detail

    描述 CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    语言 ALL

    日期 17/09/2021

    版本 R.0

    代码 PH20DUP302-heosbox-detail

    描述 CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    语言 ALL

    日期 17/09/2021

    版本 R.0

    代码 PH20DUP301-heosbox-detail

    描述 CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    语言 ALL

    日期 17/09/2021

    版本 R.0

    代码 PH20LUP307-heosbox-open

    描述 CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    语言 ALL

    日期 17/09/2021

    版本 R.0

    代码 PH20LUP304-heosbox

    描述 CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    语言 ALL

    日期 17/09/2021

    版本 R.0
