pGDN
总体特征

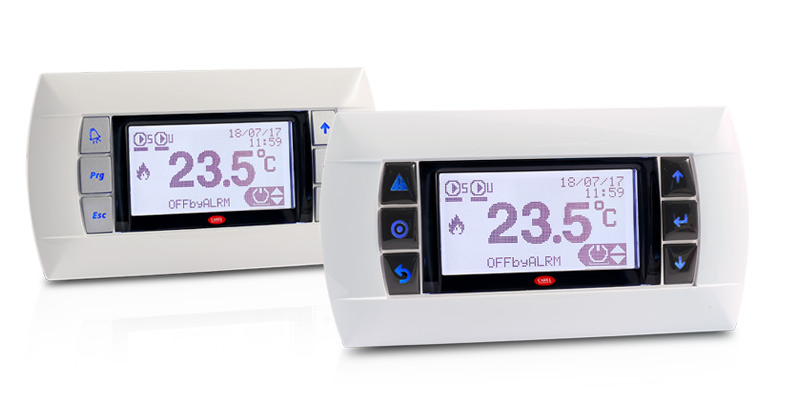

The pGDN semi-graphic terminals are part of the range of pCO sistema user interfaces designed to offer higher versatility and extensive customisation possibilities. When designing these terminals, CAREL focused special attention on simplicity of programming and the quality of performance, while maintaining a high aesthetic standard. The terminals have a 132x64 pixel backlit WHITE display and a 6-button keypad.
pGDN features a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
These terminals can display graphic symbols of various sizes and the main international alphabets, and feature the flexibility and ease of customisation that is the basis for the design of the CAREL pCO/c.pCO sistema family products, offering more demanding customers several customisation possibilities at affordable costs, even for limited quantities. Connection to the pCO controller is available over the RS485 network using the pLAN protocol.-
更多
New hardware
PGN use a full new generation of microprocessors and LCD drivers.
Higher alarm visibility
Thanks to the dual-color alarm keys, the alarming indication is much easier to see.
Preserve backward compatibility
The code replacement is fully guaranteed by the HW and SW backward compatibility with pGD0 and pGD1/E.
文档
技术
-
2D/3D 图纸
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 2d-3d pGD1 panel 描述 2D-3D drawings 语言 ALL 日期 14/01/2014 版本 R0 -
技术说明
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 +05C001425 描述 pGN0 / pGN1 / pGNE pCO 图形显示手操器 / pCO Graphic Display 语言 CHI ENG 日期 13/04/2023 版本 1.3 代码 +050001425 描述 pGN0 / pGN1 / pGNE pCO display grafico / pCO Graphic Display 语言 ENG ITA 日期 13/04/2023 版本 1.3
商业
-
其他相关文档
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 +800004036 描述 Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach 语言 POL 日期 05/04/2023 版本 1.2 代码 +800004031 描述 Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving 语言 ENG 日期 05/04/2023 版本 1.2 代码 +800004030 描述 Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico 语言 ITA 日期 05/04/2023 版本 1.2
产品图片
-
高清图片
* Entries are ordered by date
代码 描述 语言 日期 * 版本 代码 PH17LPG301-pGDN 描述 pGDN-CAREL-TerminalsUnit-Terminals 语言 ALL 日期 01/09/2021 版本 R.0
